The C021 is a compact and durable analog high-definition (AHD) camera designed for both indoor and outdoor surveillance or monitoring applications. With optional megapixel resolutions and solid low-light performance, this unit is ideal for fleet vehicles, commercial machinery, or fixed-site installations where clarity and reliability matter most.

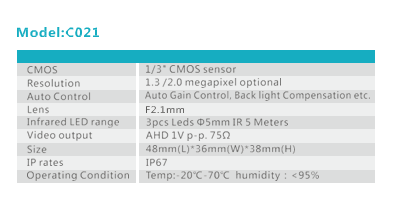

Technical Specifications:
-
CMOS Sensor: 1/3" CMOS
-
Resolution: Optional 1.3MP or 2.0MP
-
Auto Control: Auto Gain Control (AGC), Backlight Compensation (BLC), and other enhancements
-
Lens: F2.1mm wide-angle lens
-
Infrared (IR) Range: 3 IR LEDs (Φ5mm) with night vision up to 5 meters
-
Video Output: AHD 1V p-p, 75Ω impedance
-
Size: 48mm (L) × 36mm (W) × 38mm (H)
-
IP Rating: IP67 – Waterproof and dustproof for tough environments
-
Operating Conditions: -20°C to 70°C; Humidity <95%
